The L210M line array speaker is a compact two-way crossover system. It provides a frequency range of 75Hz-5KHz (low frequency) + 1.2KHz-20KHz (high frequency), featuring smooth frequency and phase response. A 3" neodymium high-frequency compression driver and two 10-inch neodymium low-frequency drivers form a highly dynamic combination, significantly reducing the weight of the cabinet and providing an extremely high sound pressure/volume ratio.
Application scope: sound reinforcement for small performances, dining bars, sports venues, and bars.
| Model： | L210M |
| Type: | External two-way dual ten-inch professional line array speaker |
| Components： |
LF：2×10" Neodymium magnetic woofer HF：1×3" Neodymium magnetic tweeter |
| Frequency response： | 75Hz-5KHz（LF）+1.2kHz-20KHz(HF） |
| Rated Power： | LF:900W HF:110W |
| Program Power: | LF:1800W HF:220W |
| Peak Power: | LF:3600W HF:440W |
| Sensitivity(1w/1m)： | 102dB(LF)+110db(HF) |
| Maximum Sound Pressure： | 135dB |
| Nominal Impedance： | 8Ω(LF) + 8Ω(HF) |
| Dispersion angle： | 110°×10° |

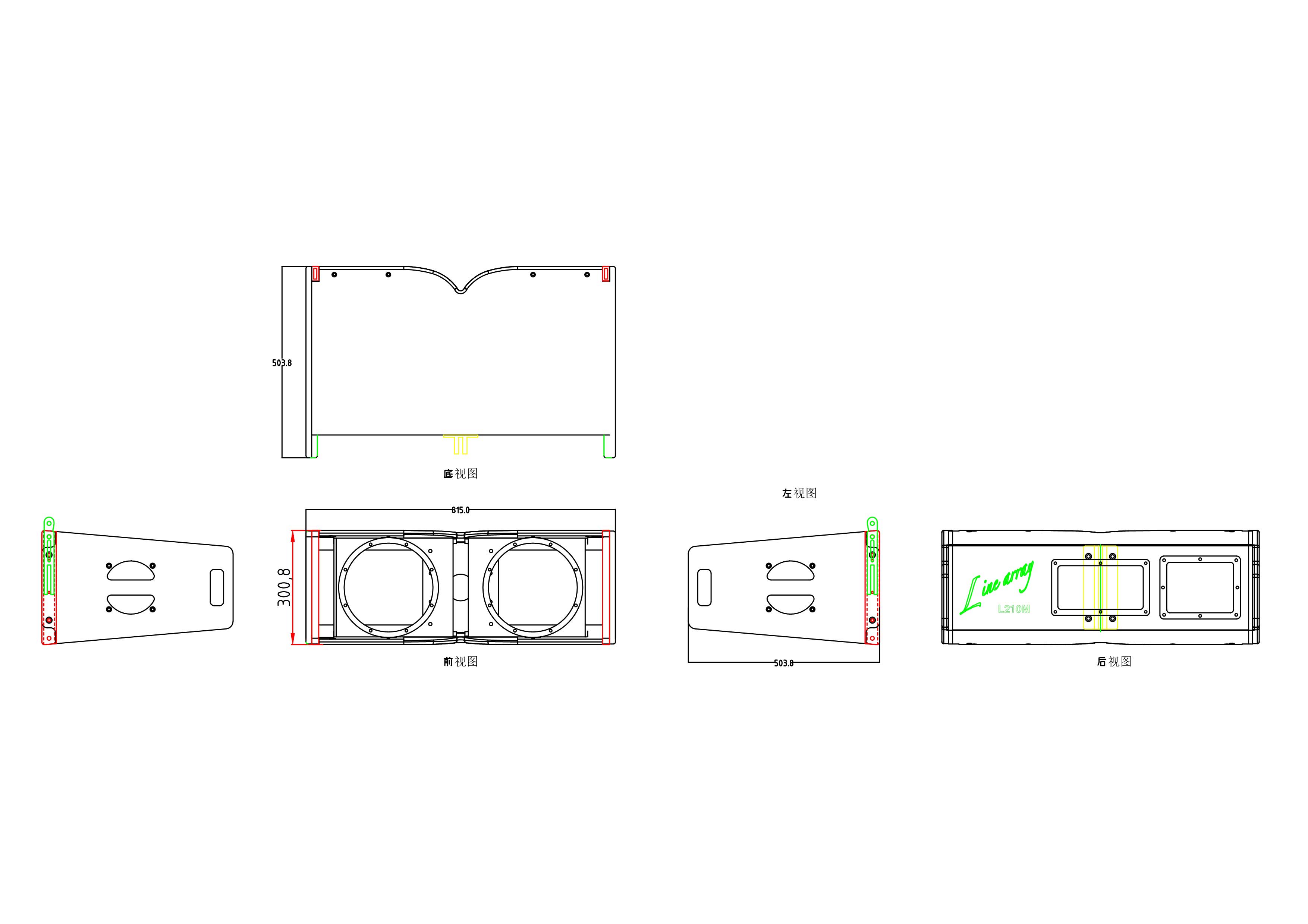

| Dimensions(W×D×H): | 764×574×314mm |
| Weight： | 28kg |
