| Technical Specifications | Active two-way linear array loudspeaker |
| frequency response range | 48Hz-16KHz |
| rated power | 810W(RMS |
| Peak Power | 3240W(PEAK) |
| Nominal impedance | 4 ohms |
| sensitivity | 104.5dB |
| Maximum sound pressure | 133.8dB |
| Unit composition | LF2X10" neodymium magnetic conical low-frequency unit, HF1X3" neodymium diaphragm compression driver, installed on waveguide and acoustic lens |
| projection angle | 0-10°/110° |
| Box material | Multi-layer birch plywood |
| Spray painting color | Black polyurea coating |
| protective face shield | Black perforated steel + sound-permeable fabric |
| Input | Active power amplifier with built-in input |

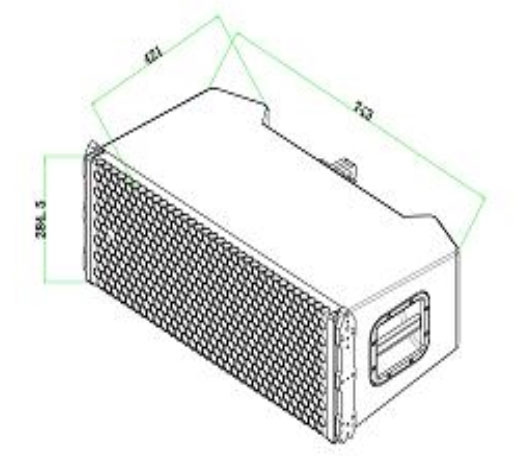

| Size (WXHXD) | 743*284.3*357.4mm |
| Net weight | 28kg |
FEATURES
· Built in high performance DSP, 24-bit, AD/DA 48kHz FIR sampling rate, RS485 connector, Software control is available
· Power supply, AC100V-250V is available
· Professional Audio Class D Circuit
· With shield box sealed, easy to install and protect
· Widely application for Line array speaker system,full range speaker and combo speaker system

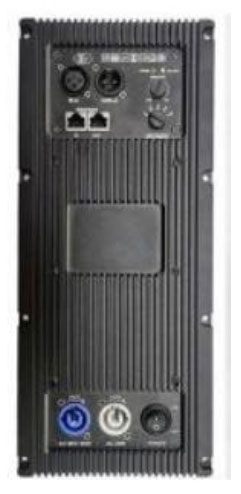

| Output Power (1 kHz/EIA) | Stereo 8Ω: 800W, Stereo 4Ω: 1400W |
| Frequency Response (BYPASS-ON) | 20Hz - 20kHz ± 0.5dB |
| Input Sensitivity | 1.3V |
| THD%: 1/8 RMS, 1KHZ | <0.05% |
| Slew Rate (RMS,1KHZ) | >20V/µs |
| Damping Factor (RMS,1KHZ) | >200 |
| Dynamic Range | ≥95dB |
| S/N Ratio (A-weighted, RMS) | ≥95dB |
| Voltage Gain | 34dB |
| Input Impedance | Balance: 20KΩ, Unbalance: 10KΩ |
| Output Circuit Design | SMPS+CLASS D |
| Cooling System | Low-noise, Variable speed fans; Air flow from front to the rear |
| Power Supply | AC110V~AC250V~50/60Hz |
| Dimensions (W×D×H) | 142mm x 332mm x 89mm |
| Weight | 1.8Kg |
